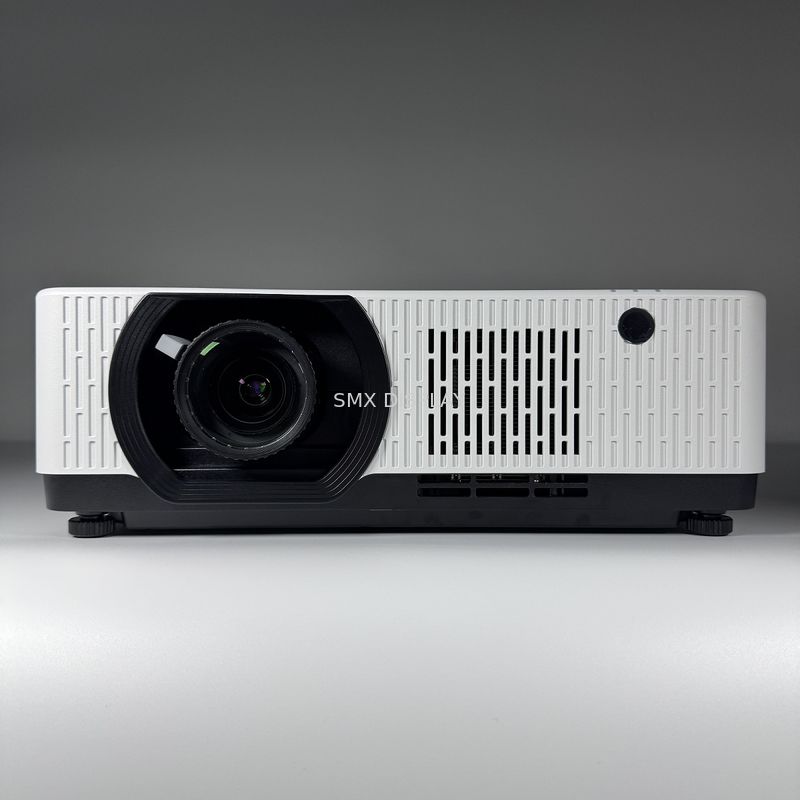

Name: High-Brightness 3LCD WUXGA Laser Projector 8200 lumens for Large Venues
Brand: Shenzhen SMX Display Technology Co.,Ltd
SKU: MX-VL820U
Price: 2450 USD
Availability: InStock

Einzelheiten zum Produkt

Herkunftsort: China

Markenname: SMX\OEM

Zertifizierung: CE&RoHs

Modellnummer: MX-VL820U

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1 SATZ

Preis: 2450 usd

Verpackung Informationen: Karton

Lieferzeit: 5 bis 8 Tage

Zahlungsbedingungen: T/T, Western Union, Paypal

Versorgungsmaterial-Fähigkeit: 50000 PC/Monat

Beste Preis erhalten

Einzelheiten zum Produkt

Beschreibung des Produkts

Hervorheben:

Helle:	8200 Lumen	Farbe:	Weiß
Panel:	3x0,64" mit MLA	Technologie:	3Liquid Crystal Display
Auflösung:	WUXGA (1920 x 1200)	Gegensatz:	5000000:1
Lebensdauer:	30000 Stunden	Werfverhältnis:	1.08 (breit) -1.76 (tele)
Seitenverhältnis:	Eingeborener: 16:10 kompatibel: 4:3/16:9	Linsenverschiebung:	V: +45% ∼0%、 H: ±21%
Linsenart:	festgesetzt

Helle:	8200 Lumen
Farbe:	Weiß
Panel:	3x0,64" mit MLA
Technologie:	3Liquid Crystal Display
Auflösung:	WUXGA (1920 x 1200)
Gegensatz:	5000000:1
Lebensdauer:	30000 Stunden
Werfverhältnis:	1.08 (breit) -1.76 (tele)
Seitenverhältnis:	Eingeborener: 16:10 kompatibel: 4:3/16:9
Linsenverschiebung:	V: +45% ∼0%、 H: ±21%
Linsenart:	festgesetzt

High-Brightness 3LCD WUXGA Laser Projector 8200 lumens for Large Venues

SMX 8200LM 4K Outdoor Projector High Brightness 3D Laser Mapping 3LCD Projector

Product descriptions

The SMX MX-VL820U offers installation flexibility with features like Horizontal and Vertical lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection installation.

Producing up to 8,200 ANSI lumens and using LCD Display technology, the MX-VL820U is capable of powerful, crisp, colour accurate images regardless of ambient light in the room.

High-Brightness 3LCD WUXGA Laser Projector 8200 lumens for Large Venues 0

High-Brightness 3LCD WUXGA Laser Projector 8200 lumens for Large Venues 1

Key Features

* 8,200 center lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio.
* High brightness and contrast with long life 20,000 hour Laser + Phosphor Light Source.
* 10-bit color processing, for superior color reproduction.
* Native WUXGA resolution. Compatible with inputs up-to UXGA, WUXGA and 4K.
* Supports analog and digital video input in all color standards up-to 1080p.
* Convenient mid-range (1.6:1) manual zoom and focus lens.
* Horizontal, Vertical & Corner Keystone Correction.
* Pincushion/Barrel & 6 point Geometric Correction.
* Horizontal & Vertical Manual Lens Shift. Wired network control.
* Compatible with Crestron RoomView & AMX Device Discovery Technology.

The body is equipped with an outstanding 16W built-in speaker, making the sound louder and the meeting more vivid.

High-Brightness 3LCD WUXGA Laser Projector 8200 lumens for Large Venues 2

Parameters

8200 Lumen 3LCD Laser Projector
Key parts
	Model No.	MX-VL820U
	Brightness(Lumen)	8200
	Resolution	WUXGA
	Light source	NICHIA LASER
Overall Spec
Panel	Display Panel	3x0.64" with MLA
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Light source lifetime	Full Normal/Normal mode	20000hrs
	ECO1 mode	30000hrs
	ECO2 mode	30000hrs
Projection Lens	F	1.58-2.02
	f	15.3mm-24.6mm
	Zoom/Focus	Manual
	Throw Ratio	1.08 (wide)-1.76 (tele)
	Zoom Ratio	1.6
	Screen size	30-300 inch
	Lens Shift	V: + 60%, H: +/- 29%
CR	Contrast Ratio (FOFO)	5000000:1
Noise	Noise(dB) *1	39dB(Normal) 31dB(ECO1) 29dB(ECO2)
Uniformity	Uniformity(Actual Min) -JISX6911	80%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4B(IN)	*2
	USB-A	*1
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	HD BaseT	*1(Optional)
	Audio in (mini jack,3.5mm)	*1
Output	VGA	*1
Output	Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1 (For upgrade)
General Spec
Audio	Speaker	16W*1
Dust filter		W/Filter
Filter Lifetime		8000h
Power Consumption	Power Requirements	100~240V@ 50/60Hz
	Power Consumption (Normal) (Max)	425
	Power Consumption (ECO1) (Max)	285
	Power Consumption (ECO2) (Max)	235
	ECO Standby Mode Power Consumption	<0.5W
Temp.&Humidity	Operating Temp.	0m≤Altitude≤1700m, Ambient 0°C~50°C
	Operating Temp.	1700m＜Altitude＜3000m, Ambient 0°C~40°C
	Operating humidity.	20-85%
	Store Temp.	-10 to 50°C
	High altitude	0~3000m
Other Functions
Keystone	Keystone Correction (Lens@center)	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune
OSD	Languages	26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazakh, Vietnamese ,Thai, Farsi
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control--AMX Discovery	Yes
	LAN Control--PJ Link	Yes
Scanning Frequency	H-Synch Range	15~100KHz
Scanning Frequency	V-Synch Range	24~85Hz
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Display Resolution	Video Signal Input	480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW setting	Auto Setup	INPUT SEARCH, AUTO PC ,Auto Keystone
	Blank	Yes
	Suspend	Yes(5 minutes no signal as default)
	Picture mode	Dynamic, Standard, Cinema, Colorboard,sim-DICOM ,Blackboard(Green)
	Cooling time	0s,normal,30s
	Auto Ceiling	Yes
	D-Zoom	1~33
Others	360° projection	Yes
Others	Edge Blending	Yes
Dimension&Weight
	Product Size (mm)	405 (W)358(D)137(H)
	Net. Weight (KG)	~7.9KG
	Packaging Size(mm)	510 (W)498(D)260(H)
	Gross. Weight (KG)	~10.4KG
Accessory
	Manual Languages	Chinese, English
	Standard Accessaries	Power cord, HDMI cable, and Remote control
	Warranty	3years

Company profile:

We are a manufacturer of projectors in China, supplying Laser Projector, 3LCD Projector, DLP Projector, LCD Short Throw Projector, Laser Short Throw Projector

OEM is available; welcome to contact us to chat about your requirements.

Small MOQ, 1 pc is available.

Website: www.smxdisplay.com
